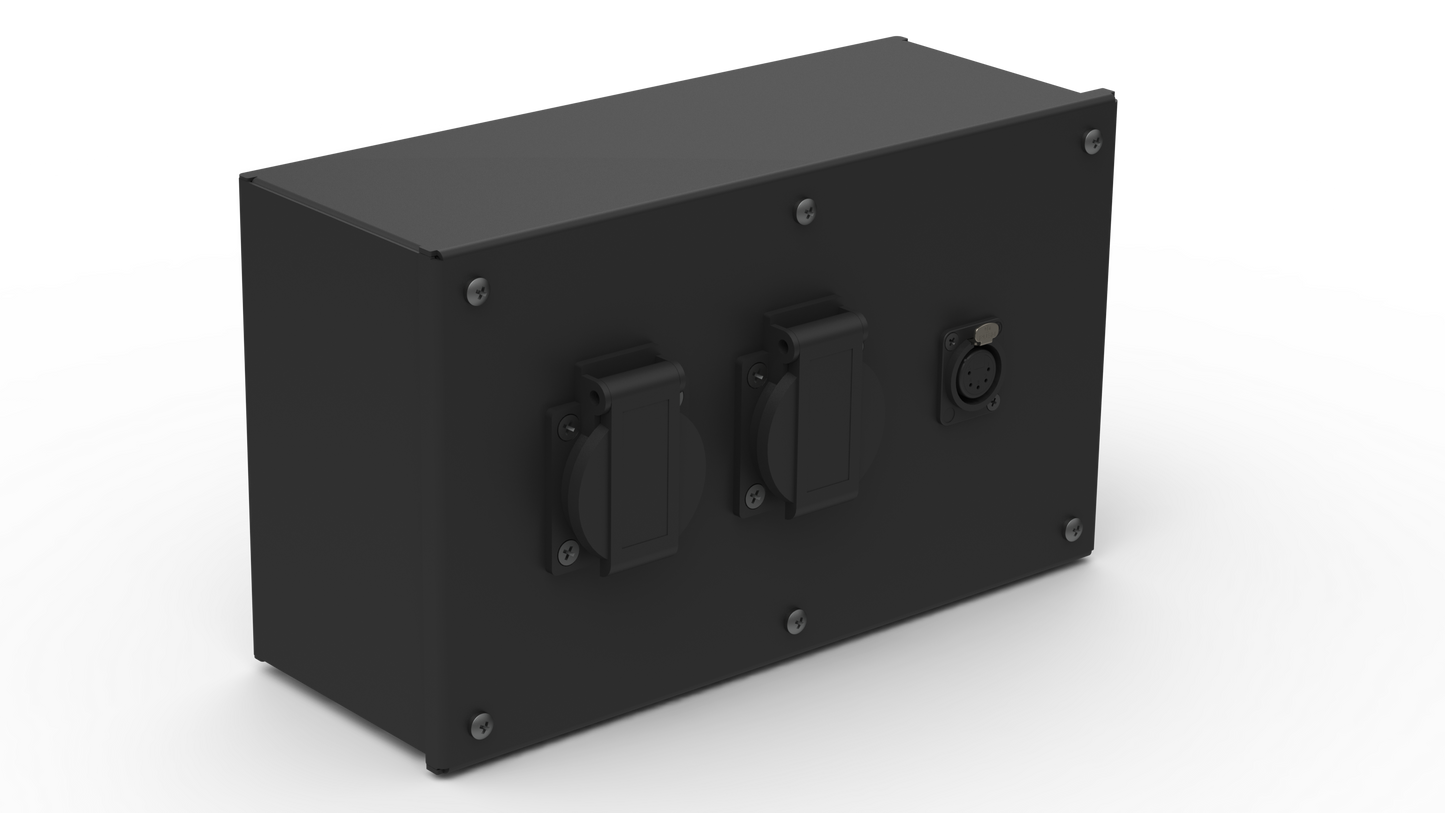

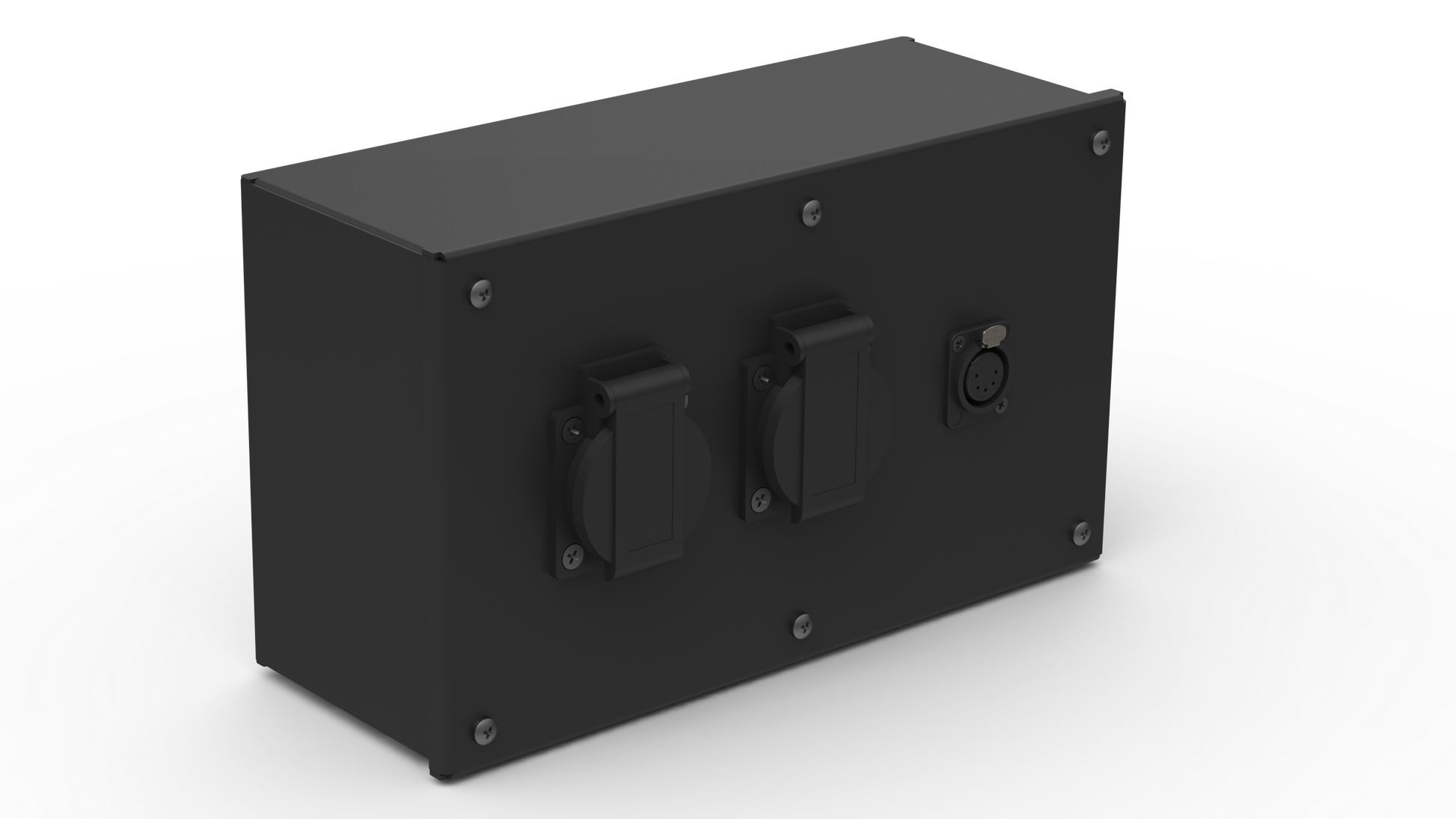

Junction box 2 Schuko 5PIN DMX Out
Junction box 2 Schuko 5PIN DMX Out
Couldn't load pickup availability
General Information
· Model: Junction box 2 Schuko 5PIN DMX Out
· Product Type: Junction box
· Applications: Stage Lighting, Sound Systems, Event Power Distribution, Film Industry
· Manufacturer: NA Products
Features
· Combines power and data signal distribution in a single compact unit
· Two Schuko power outlets for versatile power connections
· Integrated 5-pin DMX output for professional lighting control
· Durable construction for demanding stage and event environments
· Compact and portable design for ease of use
Technical Specifications
Parameter |
Details |
Input Connection |
Power Input (open wires), 1 x Data Input (5-Pin DMX) |
Output Connections |
2 x Schuko Power Outlets, 1 x 5-Pin DMX Out |
Voltage Rating |
220-240V AC |
Power Capacity |
16A per outlet |
Protocol Compatibility |
DMX512 |
Material |
High-grade aluminum casing |
Protection Rating |
IP54 |
Dimensions and Weight
· Dimensions: 30 cm x 15 cm x 10 cm (L x W x H)
· Weight: 2.8 kg
Compliance and Certifications
· CE Certified
· IP54 Rated for dust and splash resistance
· Complies with EN and IEC standards for electrical safety
Applications
· Stage Lighting: Ensures power and DMX control for lighting fixtures
· Sound Systems: Provides reliable power supply for audio equipment
· Event Power Distribution: Ideal for managing power and data needs in events
· Film Industry: Supports lighting and power requirements on film sets
Package Contents
· 1 x Junction Box 2 Schuko + 5-Pin DMX Out
Warranty
· This product is covered by a 2-year limited warranty against manufacturing defects.
Usage Instructions
1. Connect the power input to a compatible CEE 32A source
2. Attach devices to the Schuko power outlets and DMX output
3. Verify all connections are secure before powering on the system
Monitor device operation using the built-in indicators
