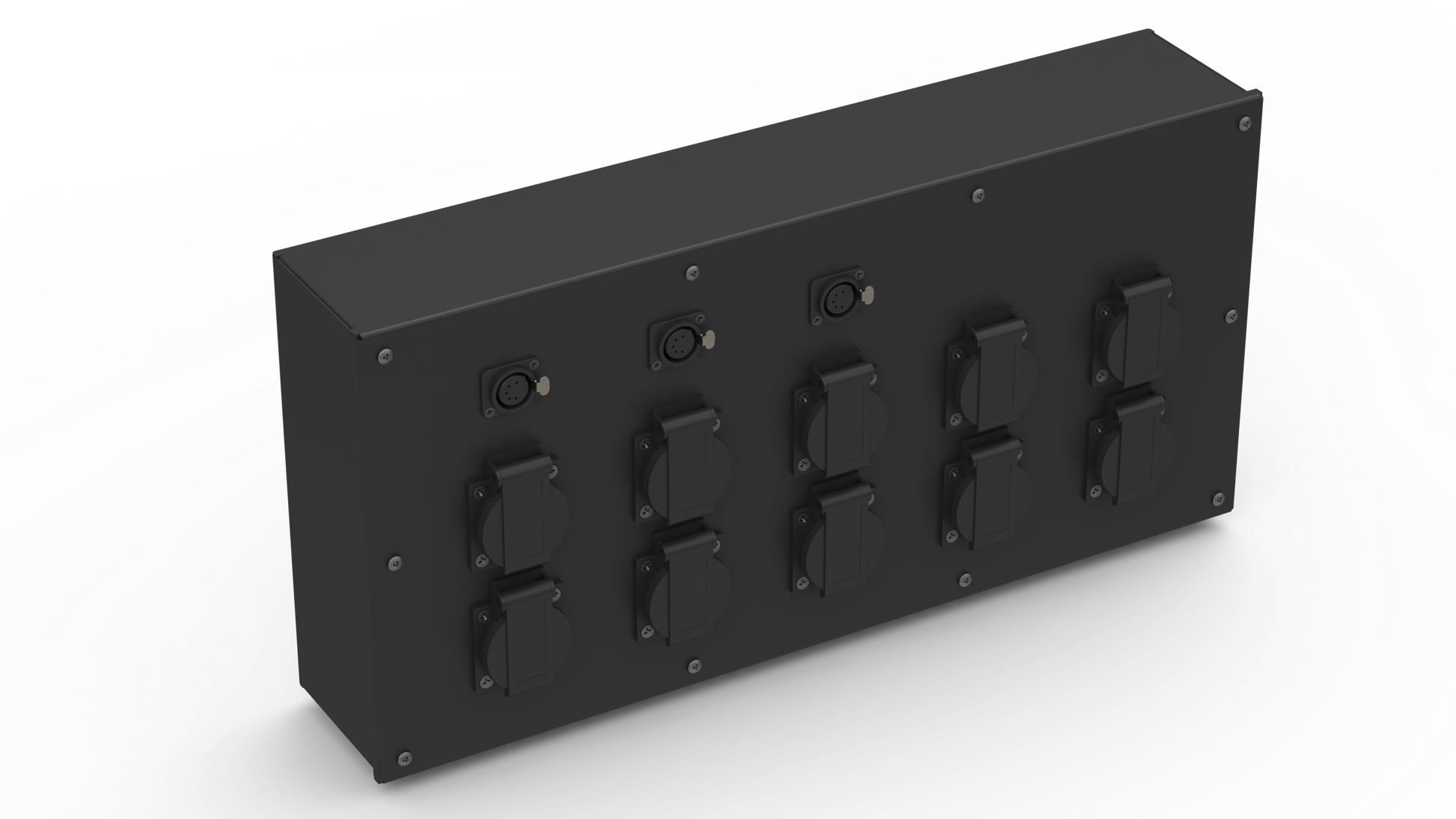

Junction box 10 Schuko 3x5PIN DMX Out
Junction box 10 Schuko 3x5PIN DMX Out
Couldn't load pickup availability
General Information
· Model: Junction box 10 Schuko 3x5PIN DMX Out
· Product Type: Junction box
· Applications: Stage Lighting, Sound Systems, Event Power Distribution, Film Industry
· Manufacturer: NA Products
Features
· High-capacity power and data signal distribution in a single unit
· Ten Schuko power outlets for versatile power connections
· Three integrated 5-pin DMX outputs for advanced lighting control
· Rugged construction for professional stage and event environments
· Compact design with easy portability and setup
· Built-in overload protection for enhanced safety
Technical Specifications
Parameter |
Details |
Input Connection |
Power Input (opwen wires), 1 x Data Input (5-Pin DMX) |
Output Connections |
10 x Schuko Power Outlets, 3 x 5-Pin DMX Out |
Voltage Rating |
220-240V AC |
Power Capacity |
16A per outlet |
Protocol Compatibility |
DMX512 |
Material |
High-grade aluminum casing |
Protection Rating |
IP54 |
Dimensions and Weight
· Dimensions: 40 cm x 20 cm x 15 cm (L x W x H)
· Weight: 5.0 kg
Compliance and Certifications
· CE Certified
· IP54 Rated for dust and splash resistance
· Complies with EN and IEC standards for electrical safety
Applications
· Stage Lighting: Ensures power and DMX control for complex lighting setups
· Sound Systems: Provides reliable power and data networking for audio equipment
· Event Power Distribution: Ideal for managing power and data needs in large-scale events
· Film Industry: Supports high-demand power and data requirements on film sets
Package Contents
· 1 x Junction Box 10 Schuko + 3x 5-Pin DMX Out
· User Manual
· Warranty Card
Warranty
· This product is covered by a 2-year limited warranty against manufacturing defects
Usage Instructions
1. Connect the power input to a compatible CEE 32A source
2. Attach devices to the Schuko power outlets and DMX outputs
3. Verify all connections are secure before powering on the system
4. Monitor device operation using the integrated indicators
